SKU:
kfi-snwplwxpedition-EPX
BRAND:
KFI

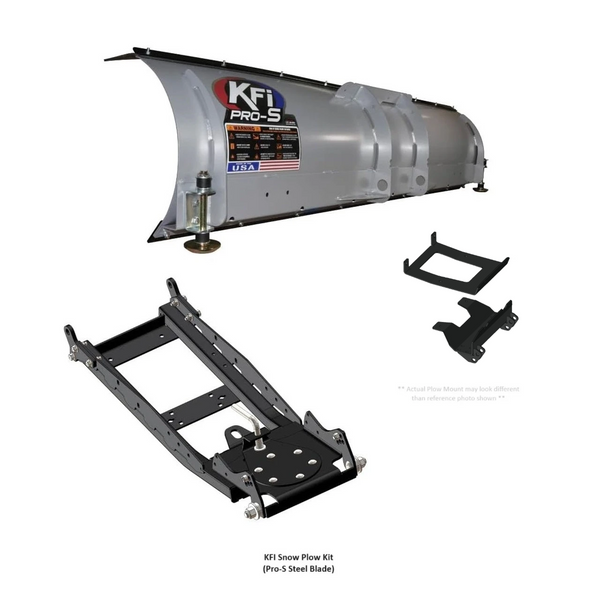

Put your Polaris Xpedition to work in the winter with the Open Trail Snow Plow Kit from KFI. KFI Snow Plow Kits are made in the USA engineered to withstand the varying harsh conditions of winter. Mounting options are available for all Polaris Xpedition models including Polaris Xpedition ADV 5 | XP 5.
Plow Kit come complete with:
- (1) Plow Blade (your choice of size)
- (1) UTV Push Tube
- (1) Vehicle Specific Mount (make sure to select your correct vehicle above)
- Does not included winch or winch mount
- 54" and 60" blades do not include 2-ply top rubber flap, must be purchased separately
NOTE: Does not work with all High Lifter Editions or Waterfowl Editions
All Plow Components Feature:
- Complete installation instructions included
- All mounting hardware included
- KFI satisfaction guaranteed
- 2-Year KFI Warranty
- Powdercoated for maximum durability
- Components are metal bead blasted before they are powder coated for the best possible finish prep.
- 100% Made in the USA
UTV Straight Plow Blades
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gusseting for the wider width and heavier UTV
- Includes a 7" high 2-ply top rubber flap
- Measures 16" Tall and 54", 60", 66" or 72" Wide
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Blade Constructed of 11 ga steel
- 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
UTV Pro Poly Plow Blades
- 3/16" Grade 50 Steel Rib and Frame construction
- Shot Blasted and Powder Coated Black Steel Frame
- Flexible Heavy Duty Black Poly face
- Same weight as steel blades
- 2-Sided 3/16" Grade 50 Steel attached with Grade 8 bolts
- Includes Plow Markers
- Replaceable Blade Face
- 66" and 72" Options
- Includes snow flap
- Dual Curvature face for supreme snow moving
- 21" Vertical blade face height with an approximate 27" height with snow flap
- Heavy Duty 1/2" thick Adjustable Skids
Pro 2.0 UTV Push Tubes
- Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- 2" Longer Than Previous Push Tube #105635
- Heavy Duty 1-1/2" 12 Gage Square Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter POM Injection Molded Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- 2-Year KFI Warranty
UTV Plow Mount (106615)
- 100% Made in the USA
- Front Lower Plow Mount System: Allows for easy attachment and removal of the plow.
- Uses Two Standard 5/8" Hitch Pins for Secure Connection (comes with push tubes)
- Plate Material: Constructed from 1/4" thick grade 50 steel for durability and strength.
- Plow Mounting Tabs: Made from 1/4" thick grade 50 steel to ensure a secure fit.
- Superior Finish Preparation: Unlike competitors, products undergo metal bead blasting before powder coating to provide the best possible finish.
- Powder Coated Black: Ensures supreme durability and corrosion resistance.
- Installation: Comes with complete instructions for hassle-free installation.
- All Necessary Hardware Included: Provides all the mounting hardware needed for installation.
Satisfaction Guaranteed
** Actual Plow Mount may look different than reference photo shown **
OPTIONAL ADD-ONS
4500lbs Winch Kit:
- Standard (#U45-R2) - 38' Steel Cable #UTV-CBL-4K
- Wide (#U45w-R2) - 52' Steel Cable #UTV-CBL-4K
- Kit inclusion:
- Steel Cable
- Handheld 14' Corded Remote(ATV-HR)
- UTV Dash Rocker Switch (UTV-DRS-K)
- New Heavy Duty Electric Contactor (ATV-CONT)
Polaris Xpedition Winch Mount (102150):
- 100% MADE IN USA
- Constructed of 3/16" Grade 50 steel
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep
- Powder coated black for supreme durability
- Very easy to install
- Complete installation instructions included
- Mounts winch tucked back behind front bumper
- Satisfaction guaranteed
- Roller fairlead and winch not included
Quick Plow Pulley & Soft Strap (106680/106470)
- #106680 Pulley: Features a 2-1/8" steel wheel to prevent cable damage and improve lift geometry, reducing electrical strain on your UTV.
- #106470 12" Soft Strap: USA-made heavy-duty webbing with a 3,200 lb break strength.
Hydraulic Actuator (Angle) Kit:
- Specifically designed for use with KFI UTV Pro 2.0 Push Tubes #106300 / Open Trail Tubes #10-6300
- Parker Industries Made in the USA Electric (12 volt) over Hydraulic Cylinder
- Complete wiring kit with Carling Technologies Two-Way Dash Rocker Switch
- Powder Coated TOUGH
- Does NOT include the Tube System #106300
- Hydraulic Angle Kit for Machine with Tires (106305/106940/ACT203)
- Hydraulic Angle Kit for Machine with Tracks (106335/106940/ACT203) - Requires UTV Track Extension (106330), must be purchased separately
UTV Plow Tube Track Extension (106330):
- Designed to work with KFI UTV Tubes (106300 & 105635) and KFI CC Conversion Push Tubes (106310 & 105905)
- Constructed of Heavy Duty 1/4” Grade 50 Steel
- Extends UTV Blade 10.33”
- Shot Blasted before powder coating; Powder Coated TOUGH - Black
- Replacement for #105565
Plow Markers:
- Increase your blade end visibility for added safety
- Bolts to the side/ends of your blade
- Includes two markers
- Standard Blade Plow Marker Kit (105640) - has a steel 89-degree angled base ; 15.5" length 0.5 " diameter
- Pro-Poly Plow Blade Marker Kit (105810) - has a straight base
Flap Kit:
- 11-Gauge Steel Adjustable Snow Flap Edge Strip
- 6.5” 2-3ply Rubber Flap (acts as a snow flap as well as an extension to the plow blade)
- All KFI Blades are Pre-Drilled
- Two-way Adjustable
- 60" Snow Flap (105144)
- 66" Snow Flap (105835)
- 72" Snow Flap (105290)
Side Shield:
- Attaches to the ends of the plow to help reduce snow and dirt overflow
- 3/16” Grade 50 Steel Powder Coated Black
- Pro-S Side Shield - Tapered Wing for Standard Blade (105540) -- Adds 2-1/4” Width to size of blade per Shield
- Pro-Poly Tapered Side Shield - Driver Side (106110) -- Adds 5.6” Width to size of blade per Shield
- Pro-Poly Tapered Side Shield - Passenger Side (106115) -- Adds 5.6” Width to size of blade per Shield
UTV SQ Push Tube Leveling Kit:
- Allows mounting of push tube at the correct height so the blade is level.
- Works with KFI UTV SQ Push Tubes (106300)
- Shot Blasted before powder coating ; Powder Coated TOUGH - Black
- 1" Negative SQ Push Tube Leveling Kit (106320) - For machines 8.5"-9.5"
- 1"- 2" UTV SQ Push Tube Leveling Kit (106322) - For machines 11.5" - 14"
- 4" Positive UTV SQ Push Tube Leveling Kit (106324) - For machines 14"-16"
- 6" Positive UTV SQ Push Tube Leveling Kit (106326) - For machines 16"-18"
